APPLICATIONS: For domestic and industrial applications, irrigation and hydropneumatic sets.

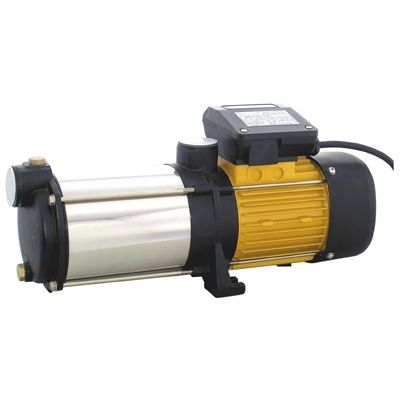

Quiet running multistage centrifugal pump.Built-in self priming valve, not very sensitive to the impurities. Self-priming up to 8 m.PUMP

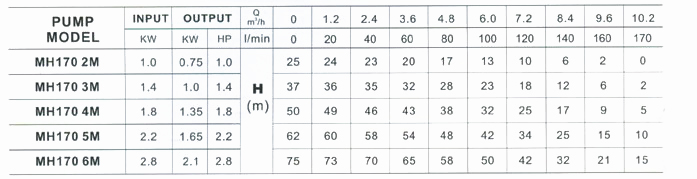

--- Delivery up to 170l/min (10.2 m3/h).
--- Head up to 75m.
--- Temperature of pumped liquid: 0-40 ℃
--- Maximum operating pressure: 8.0 bar. MOTOR
--- Asynchronous,two poles.
--- Protection class : IPx5.
--- Class F insulation.
--- Single phase version 220-240V 50Hz with automatic reset overload protection.
--- Three phase version: 220-240V/380-415V 50Hz,the overload protection must be provided and installed by the user in the control panel.
--- Maximum ambient temperature 40 ℃ MATERIALS
--- Suction/discharge mounting in Cast Iron (Casting brass are available).
--- Pump Housing in SUS 304 stainless steel.
--- Diffussor in PPO (Noryl®)
--- Impellers in PPO (Noryl®) (SUS 304 Stainless steel are available).
--- Motor Shaft in SUS 416 stainless steel (Carbon Steel and SUS 316 Stainless steel are available)
--- Mechanical seal with Ceramic/graphite, NBR elastomers,other parts are made of SUS 304 stainless steel.
--- O-Ring made of NBR ( EPDM are available). OPTIONAL FEATURES
--- Different voltages and frequencies.
--- Different materials for the mechanical seal.
|
