JS3 3" Solar Pump

Model NO.:
JS3-0.9-32, JS3-1.3-50, JS3-1.8-60, JS3-1.8-80
JS3-1.8-100, JS3-2.1-100, JS3-2.1-120, JS3-2.3-140
JS3-2.3-160, JS3-2.3-180

MPPT and DSP chip technique
Motor filled with oil

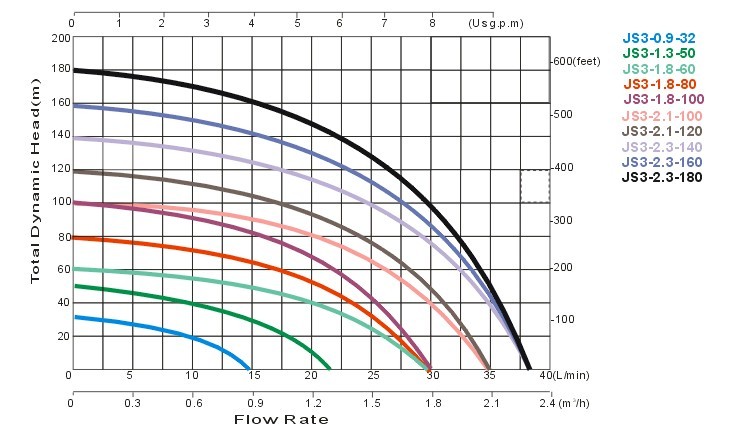

Max Head:165m

APPLICATION AREA:
This project products are mainly used in dry region for irrigation of agricuture.
It can be used for drinking water and living water.
The living codition could be much improved.
It also can be used for fountains.

MATERIAL OF PARTS:
Outlet:Stainless steel
Pump body:stainless steel
Motor body:stainless steel
Screw:stainless steel
Bearing:NSK from Japan

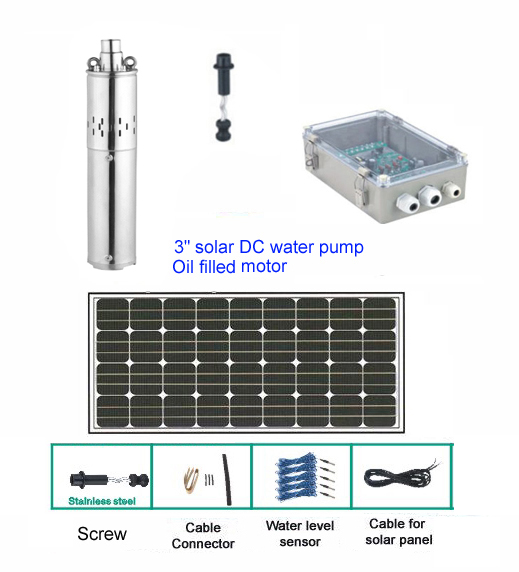

ACCESSORIES:
Pump controller, Screw, Cable connector,
Water level sensor, Cabel for solar panel,
Cable connector, Rope.

ADVANCED TECHNOLOGY
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor.

2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation¡Ý300M¦¸,
the motor security was much improved.

3.Structure innovation
Oil filling,convenient installation and environmental protection.
