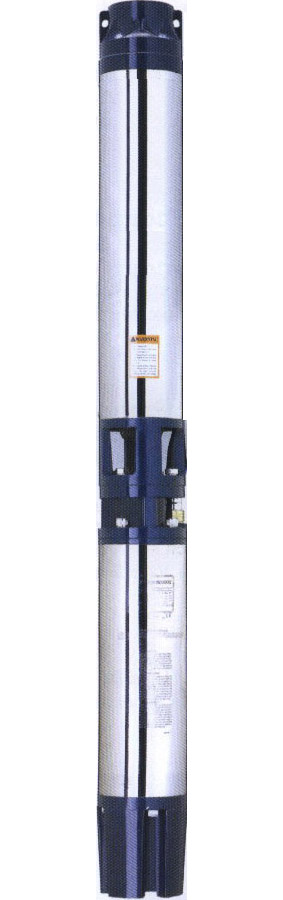

JSR6/18 (6" PUMP)

Identification Code
eg:JSR6/18-6(T)
JSR: pump name
6: well dia 6"
18: capacity(m3/h)
6: Impeller's Number
(T):Three phase

Applications :
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.

Operating conditions :
Maximum fluid temperature up to +35 C
Maximum sand content:0.25%
Maximum immersion depth: 100m.
Minimum well diameter:6

Motor :
Rewind able motor
Full obturated screen motor
Three-phase: 380V-415V/50Hz
Equip with special start-up control box

Internal diameter of outlet:
2.5" 3"

Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.

Warranty:2 year
(according to our general sales conditions).

Material:
1,pump external casing:AISI304ss
2,Delivery casing:Cast iron G20 UNI5007
3,Suction lantern:Cast iron G20 UNI5007
4,Diffuser:Plastic.PC/AISI304ss
5,Impeller :Plastic.POM or Plastic.PPO
6,Shaft : AISI304ss or AISI316ss
7,Shaft coupling: AISI304ss or AISI316ss
8,Wear ring: AISI304ss
9,Motor external casing: AISI304ss
10,Top cover: Cast-iron G20 UNI5007 or AISI304ss
11,Bottom support: Cast-iron G20 UNI5007 or AISI304ss
12,Seal: NBR or Carbon-SIC/TC
13,Shaft: AISI304ss-C1045
14:Thrust Bearing : NSK (Japan) or Ceramic/Carbon
15:Radial Bearing : NSK (Japan) or Ceramic/TC
