JETS

The JETS series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare parts, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather.

Operating Limitations
Max ambient temperature up to 40
Max fluid temperature up to 40
Max pressure up to 10 bar

Construction Features
Pump Body: stainless steel
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Impeller: brass/plastic
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

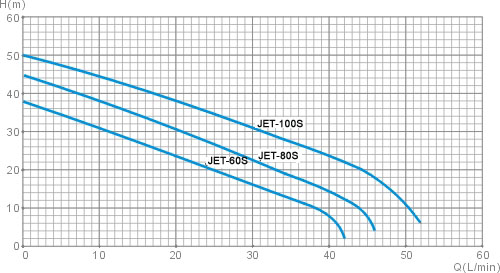

MODEL INPUT POWER VOLTAGE MAX.FLOW
MAX.HEAD
INLET/
OUTLET
GW PACKING DIMENSION
JET60S 0.37KW 220V/50HZ 42L/min 38m 1"/1" 8.2kg 370x210x220mm
JET80S 0.55KW 220V/50HZ 46L/min 45m 1"/1" 12.5kg 400x220x238mm
JET100S 0.75KW 220V/50HZ 52L/min 50m 1"/1" 13.5kg 400x220x238mm
