V1100D/V1300D/V1800D

CONDITION OF USAGE:
1. The maximum deep it is allowed in water is 5m from its center of impeller:
2. The trans medium's temperature shouldn't be higher than 40C
3. Trans medium's PH: 4-10
4. Kinematics viscosity of the trnas mediumis: 7x10-7~23x10-6 m2/s;
5. Density of the trans medium limit: 1200 kg/m3

FUNCTION AND FEATURE:

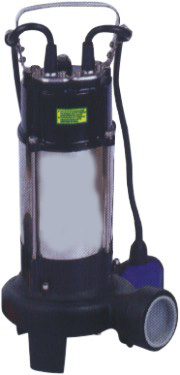

Submersible pump with cutter is an ideal machine for draining sewage. A high-speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long-fibre and firm sundries contained in the sewage, so as to avoid the impeller is blocked by the entanglement. It is suitable for draining sewage in sanitation, factory, mine and family. The float switch can automatically control on and off with the change of the liquid level. The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of pump's run even in the atrocious environment.

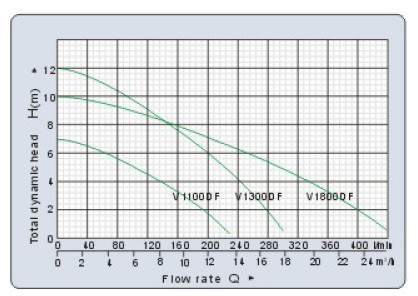

MODEL INPUT POWER VOLTAGE MAX.FLOW
MAX.HEAD
INLET/
OUTLET
GW PACKING DIMENSION
V1100D 1.1kw 220V/50Hz 233L/min 7m 50mm 22.5kg 56.5x30.5x24.5cm
V1300D 1.3kw 220V/50Hz 300L/min 12m 50mm 25.5 56.5x30.5x24.5cm
V1800D 1.8kw 220V/50Hz 440L/min 10m 75mm 30.5 58.5x35.0x24.5cm
