TS

MODEL EXAMPLE
TS 50 32-160
TS series centrifugal pump
50: Inlet size
32: Outlet size
16: Impeller dia.
0: Impeller series Number

According to standardized series DIN24255

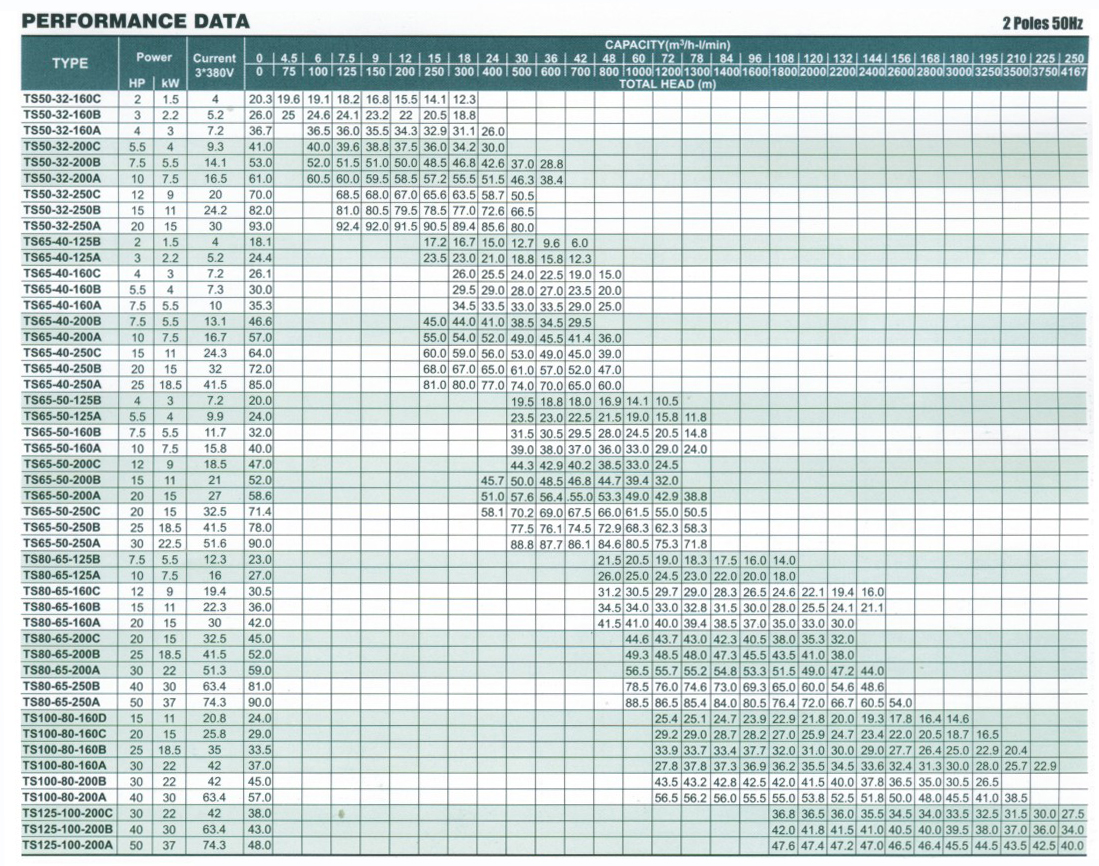

Performance and working limits:
*Capacity up to 300m3/h
*Total head up to 91m
*Max. pressure 1 Mpa
*Max. temperature 140
*Min. temperature -20

DESCRIPTION
Monobloc single stage centrifugal pumps according to standardized series DIN24255

DESIGN ADVANTAGES
Reduced dimensions and weight installation without baseplate reduce cost

APPLICATIONS
TS pumps are suitable for industrial general services, refrigerated, heated and superheated water circulation in conditioning and heating systems; they are suitable for drinkable water, pressurization units, irrigation, extraction of condensate and low pressure boiler feeding. Suitable also for application in: spray booths, bottle washing plants, swimming pools, etc.

CONSTRUCTION
Single stage pump with radially split casing, axial suction and vertical discharge.
TS pumps are coupled to the motor by means of a casing cover/motor, cast in one piece.
Shielded, grease lubricated ball bearing do not need any Maintenance. Unbalanced standard mechanical seals(silicon carbide-carbon-vition).Flanges are according to UNI 2223
PN 16

MATERIAL:
Standard construction is: Casing and impeller in cast iron. Shaft in stainless steel AISI 240

Electric Motors:
Three phase induction Motor, Protection IP55, insulation class B.
Standard voltage is 220/380V,up to 3KW(4HP),380/660V from 4KW(5.5HP)upwards.
It is possible the use of motors with higher insulation class F and other voltage and frequency.
