QB

The QB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. They have relatively simple construction and are very economical, reliable and safe. It is widely used for household and domestic applications such as water supply from wells and pools, pressure boosting, garden sprinkling, washing booths etc.
Pumps should be installed in a covered area, protected against the weather.

Operating Limitation
Max ambient temperature up to 40
Max fluid temperature up to 80
Max pressure up to 10 bar

Construction Features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

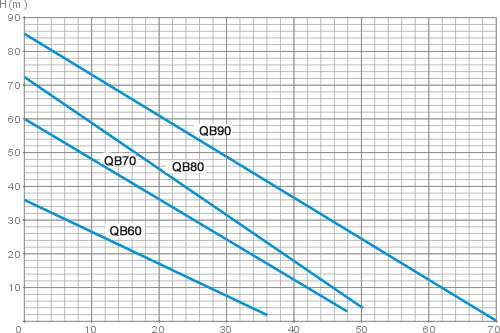

MODEL INPUT POWER VOLTAGE MAX.FLOW
MAX.HEAD
INLET/
OUTLET
GW PACKING DIMENSION
QB60 0.37kw 220V/50Hz 36L/min 36m 1"/1" 5.5kg 280x135x175mm
QB70 0.55KW 220V/50Hz 46L/min 60m 1"/1" 9kg 320x175x200mm
QB80 0.75kw 220V/50Hz 50L/min 72m 1"/1" 10.5kg 320x175x200mm
