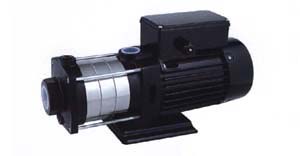

JMS

Identification Code
eg: JMS3-3(S)
JMS: Pump Name
3: Capacity(m3/h)
3: Impellers Number
S: Single Phase

Applications :
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.

Operating conditions :
Maximum fluid temperature up to +40 C
Maximum sand content:0.25%

Motor :
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz

Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.

Warranty:1 year
(according to our general sales conditions).

Material:
1,Delivery casing: Cast iron G20 UNI5007
2,Suction casing: Cast iron G20 UNI5007
3,Stage casing: AISI304ss
4, Impeller : AISI304ss
5, Motor external casing:Cast aluminum
6,Mechanical seal:Ceramic alumina.carbon,NBR
7,Shaft:AISI304 ss-C1045
8,Bearing : NSK (Japan)
