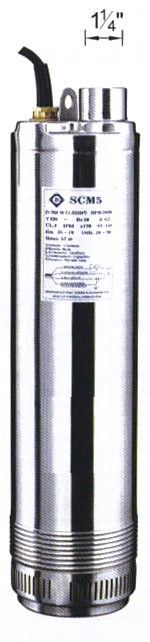

JSC (5" PUMP)

Identification Code
eg:JSC3(S)
JSC: pump name
3: impeller's number
S: single phase


Applications :
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.

Operating conditions :
Maximum fluid temperature up to +35 C
Maximum sand content:0.15%
Maximum immersion depth: 50m
Minimum well diameter:130mm

Motor :
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with special start-up control box as requirement

Internal diameter of outlet:
1.25"

Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.

Warranty:2 year
(according to our general sales conditions).

Material:
1,pump external casing:AISI304ss
2,Delivery casing:AISI304ss
3,Suction lantern:AISI304ss
4,Diffuser:Plastic.PPO
5,Impeller :Plastic.PPO or AISI304ss
6,Wear ring : AISI304ss
7,Motor external casing: AISI304ss
8,Top cover: Cast-Cu ASTM280
9,Bottom support: Cast-Cu ASTM280 or Cast-iron G20 UNI5007
10,Mechanical seal: Special seal for deep well (carbon -SIC/TC)
11,Shaft: AISI316ss-C1045
12:Bearing : NSK (Japan)
13:Seal lubricant oil: Oil for food machinery and pharmaceutical use
