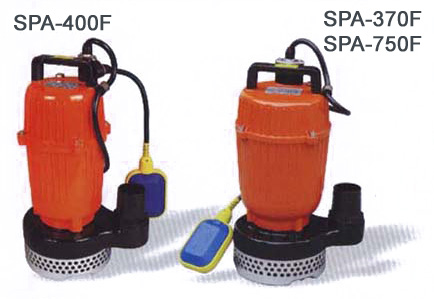

SPA-370F SPA-400F SPA-750F


CONDITION OF USAGE:
1. The depth for the electrical pump below the water is no more than 5m
2. The temperature of the water is no higher of 40C
3. The PH figure of the water is between 6.5-8.5
4. The grain diameter of the solids in the water is no bigger than 0.2mm


FUNCTION AND FEATURE:
Model SPA standing submersible pump is vastly used for farming, breed aquatics, mine enterprise and construction site. It features its compact size, light weight, and convenient use. (Also can be assembled with 3-phase motor). THe float switch can automatically control on and off with the cahnge of the liquor level. The protector in the motor can automatically cut off the power when it overheated or overcurrented, thus guaranteee the security and reliability of pump's operation even inthe atrocious environment.







MODEL INPUT POWER VOLTAGE MAX.FLOW
MAX.HEAD
INLET/
OUTLET
GW PACKING DIMENSION
SPA-370 0.37kw 220V/50Hz 216L/min 9m 50mm 12.5kg 25.0x22.0x40.5cm
SPA-400 0.4kw 220V/50Hz 216L/min 9m 50mm 13.5kg 25.0x22.0x42.5cm
SPA-750 0.75kw 220V/50Hz 333L/min 12m 50mm 16kg 27.0x23.5x42.0cm
