V550A


CONDITION OF USAGE
1. The maximum deep it is allowed in water is 5m from its center of impeller:
2. The trans medium's temperature shouldn't be higher than 40C
3. Trans medium's PH: 4-10
4. Kinematics viscosity of the trnas mediumis: 7x10-7~23x10-6 m2/s;
5. Density of the trans medium limit: 1200 kg/m3


FUNCTION AND FEATURE:
This advanced VA(WQ)series, a branch of single-phase and three-phase drainage pumps, will be your ideal drainage helper. The letter"V" which substitutes for the letters"WQ" indicates the distinct design of the filter and the broadness of the high efficient area. It can work safetly and efficiently at high flux with the feature of complete lift. The design is designed to a wide tunnel which helps to convey the solid whose diameter is about 10mm or the long fiber liquid. The floast switch can automatically control on and off with the change of the liquor or overcurrented., thus guaranteee the security and reliability of pump's operation even in the atrocious environment.

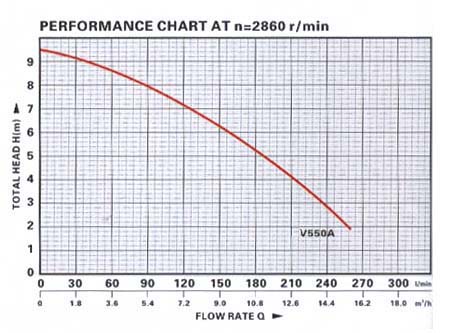

MODEL INPUT POWER VOLTAGE MAX.FLOW
MAX.HEAD
INLET/
OUTLET
GW PACKING DIMENSION
V550A 0.55kw 220V/50Hz 260L/min 9.5m 50mm 14.5kg 24.5x21.5x41.0cm
